NEW PRODUCT


			Eco-Cast Iron Anti-Syphonage “P” Traps
			with Female Threaded Sockets and Cleaning Plugs
			鑄鐵內牙梳杰有通積"P"型防吸力隔氣

	CCA038 (φ 38mm)

	3-D perspective	Section
	Not to scale, all drawings are for reference only.

Stock Code:

CCA038

Standard:

BS416. Suitable for BS EN877.

Material:

100% recyclable cast iron

Coating:

Red Epoxy

Features:

1)	Allows a level of water seal ( 80mm) so as to disable the passage of air.
2)	Prevents undesirable and foul odors from backflowing from the drainage system into the building as a result
	of heavy discharge of waste water.
3)	Particularly suitable for main pipe works without secondary ventilation.
4)	Can be fitted to drinking fountains, washbasins, sinks, bathtubs and rainwater outlets, etc.

　

　Technical Specifications

Code	DN of Socket	H Approx.	L Approx.	DN of Cleaning Plug Approx.	Depth of Seal Approx.
CCA038	φ 38mm	~188mm	~127mm	φ 20mm	φ 80mm


NOTES:
1.	The physical structure of cast iron may change during and/or after the process of smelting, therefore variance in the dimensions of products is anticipated.
2.	All specifications described here are subject to change without notice.
3.	All drawings shown in this catalog are for reference only. (Not to scale)
4.	Features and specifications are subject to change depending on market requirements.
5.	Cheung Hing Foundry Limited reserves the right to make any changes without notice concerning colors or specifications detailed in
	this catalog or to discontinue individual products.
6.	The colors of products may differ from those in this catalog.
7.	All rights reserved. It is unlawful to copy or extract the whole or part of the materials from this catalog without written consent of
	Cheung Hing Foundry Ltd.

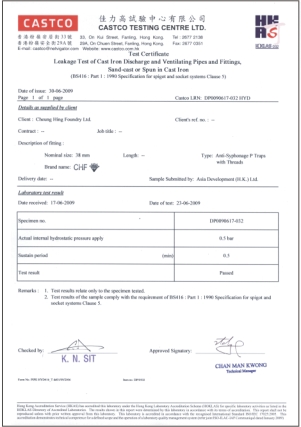

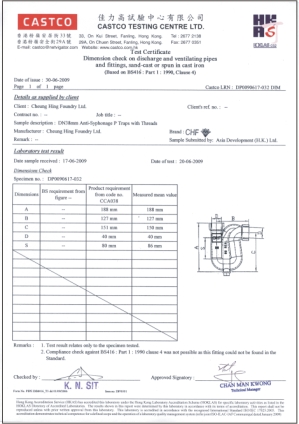

	HOKLAS Endorsed Test Certificates

© 2009, Cheung Hing Foundry Limited
